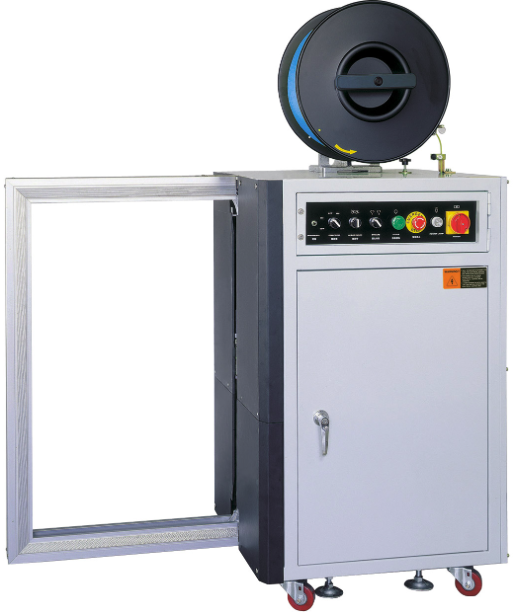

Automatic Strapping Machine (Side Sealing Type)
>> Inner tension adjustment

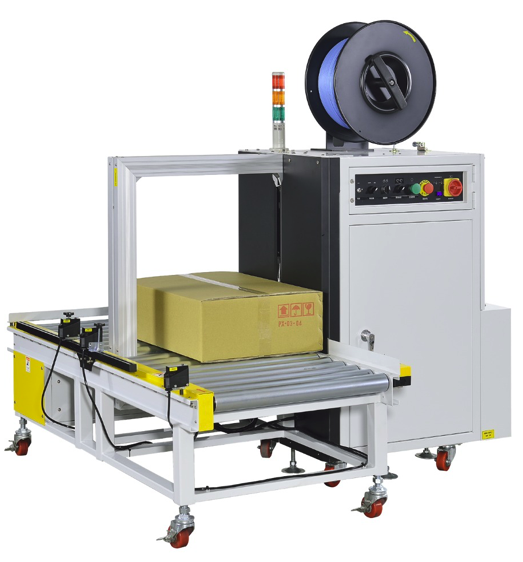

>> Available combining with conveyor (option)
>> PCB control (single machine), PLC control (producing line)
|
Arch Size |
: |
600W x 850H mm (Standard) |
|
Strap Cycle Speed |
: |
28 Cycles / per Min. |
|
Tension Strength |
: |
70Kgs / Max. |
|
Strap Width |
: |
9~15mm |
|
Sealing Method |
: |
Heat Sealing |
|
Power Supply |
: |
110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |
|
Dimensions |
: |
1400L x 640W x 1740H mm |
|
Features: |
» With indicating and detecting functions when forward feeding strap positioning. |
|
» The retry feeding of auto correcting function to correct failure strap. |
|
|
» Safety internal control voltage: 24Volt. (Optional) |
|
|
»All side-sealing models should notice the minimum height of the packaging area |
|
|

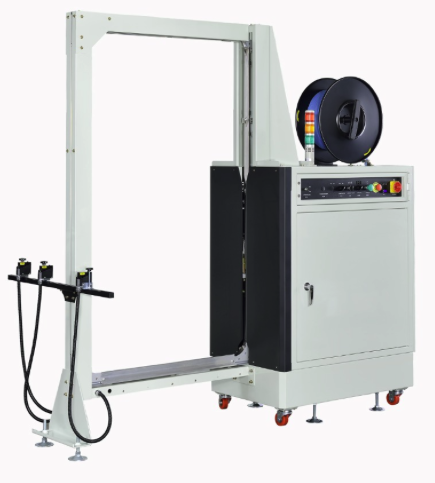

»Side-sealing models can be equipped with minimum 2 photocells to cooperate with existed input and output conveyors with controlling circuitry and the model will add -2HT in the end. |
