Strap Guide (Length)

:

L1000 mm (Standard)

Tension Strength

:

70Kgs / Max.

Strap Width

:

12~15mm

Sealing Method

:

Heat Sealing

Power Supply

:

110/220V 50/60HZ 1PH.

220/380V 50/60HZ 3PH

Dimensions

:

870L x 540W x 1380H mm

Packing Dimension

:

820L x 700W x 1560H mm

Machine Weight

:

216Kgs

Gross Weight

:

221Kgs

Features:

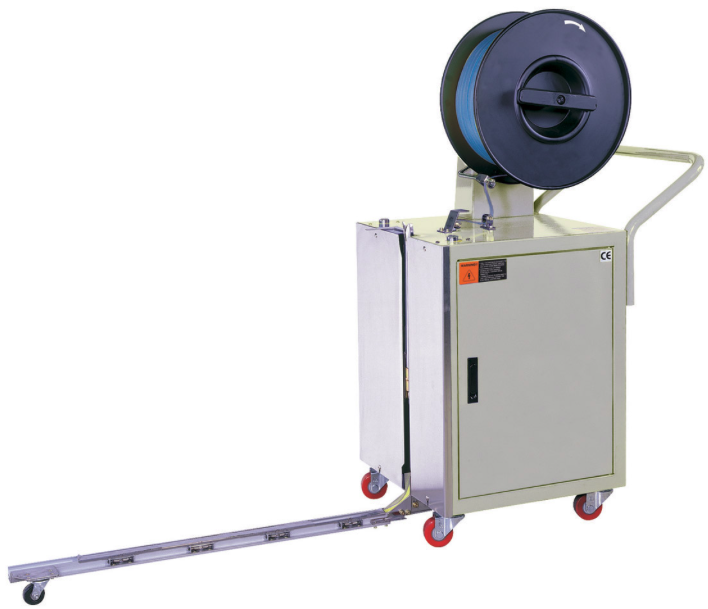

» Semi-automatic pallet strapping machine for various requirements when packaging cargo on pallets.

» Moveable design of this model provides convenient operation especially for delicate working place with manual life where cranes cannot reach.

» PP strap dispenser core inner dia: φ200MM (Standard).

» PET strap dispenser core inner dia: φ406MM (Optional).

» The arch size is L1000MM(Standard). Available arch length changed. (Optional)
