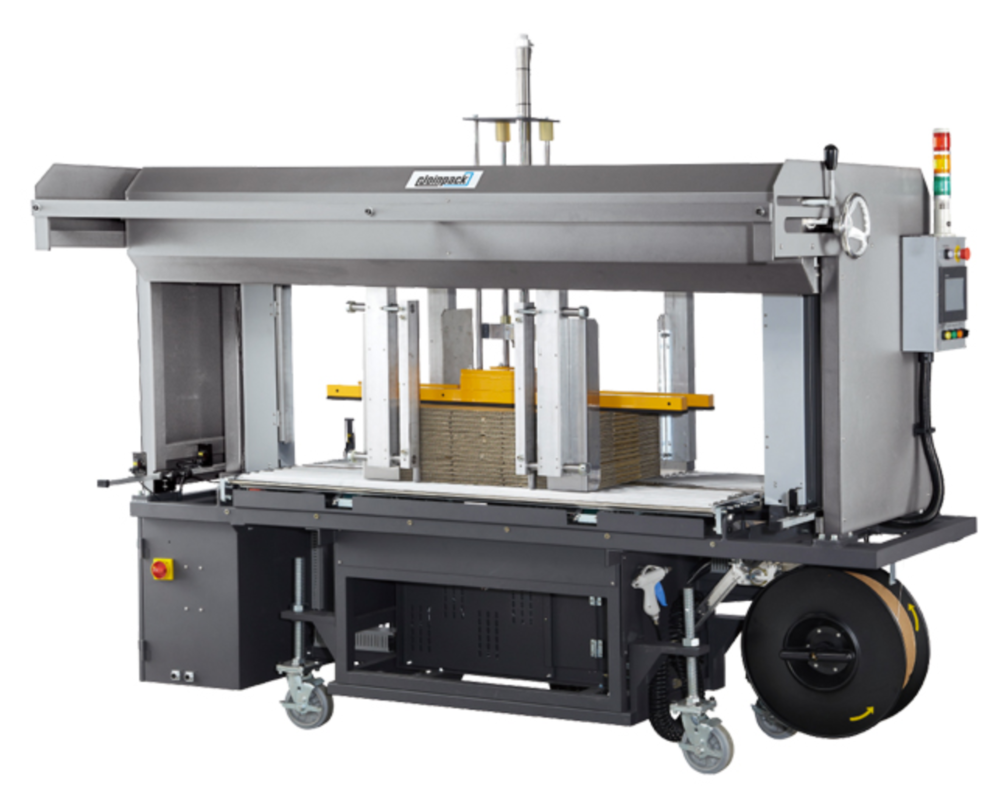

Corrugated 3-sided Bundle Squaring and Strapping System
A-88CS is built with A-88C corrugated strapper combined with the 3-sided squaring station.
Integrating with square machine with higher strapping speed, less maintenance and wide productivity with the cost-effective solution, A-88CS is designed specifically to the corrugated industry.
The electrically backstop and side squaring assure the optimized accessibility and service-friendliness, also provide bundle squaring capability.
With the integration of in-line strapping and squaring system, the A-88CS can offer the precise bundle control, neater and more stable pallet loads.
- Mitsubishi PLC
- Looping ejector
- Multiple strap function
- Easy loadingdispenser
- Variable conveyor speed
- Wide range table height adjustment
- Waist auto loading system
- Small bundle transport system is a standard
- HMI touch screen control panel, user friendly
- High speed servo motor direct driving system
- Full opening hinged conveyors for easy sealer access
- Heavy duty knurled roller conveyor, speed adjustable
- One piece tracking system for smooth, reliable high speed feeding
| Speed (straps / min) | 33 |
| Strap Width (mm) | 5,6,9 Specified |
| Tension Range | 2~55kgs |
| Conveyor Speed(m/min) | 9~50kgs |
| Stand Arch (W x H mm) | 1650 x 500 |
| Motor | Servo |
| Sealing Method | Heating element |
| Table Height (mm) | 693~1420 |
| Power Supply |
100/110/200/220/230/240V, 50/60Hz, 1PH 220/230/380/415/440V,50/60Hz, 3PH |
| Power Consumption (kw) | 21 |
|
Layout Dimension (L x W x Hmm) (50%,100%,150%,200%) |
2435 x 1170 x 2049~2770 (50%,100%,150%,200%) |
*Specification subject to change without notice
