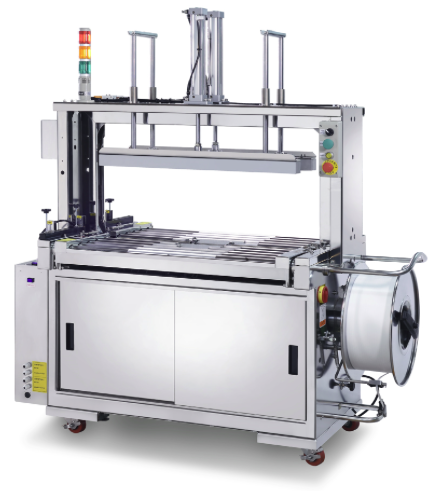

Fully Auto Strapping Machine (Stainless Steel-Power Roller Table-Pneumatic pressing)
>> Embossed for the roller (option)
>> Equipped with strapping sensor within 0/1/2 straps selector (option)
>> Penumatic pressing bar (option)
>> Combining with producting line
>> Customized arch size
|
Arch Size |
: |
850W x 500H mm (Optional) |
|
Power Table Speed |
: |
17M/50Hz per Min. |
|
Tension Strength |
: |
70Kgs / Max. |
|
Table Height |
: |
805~810mm |
|
Strap Width |
: |
9~15.5mm |
|
Sealing Method |
: |
Heat Sealing |
|
Power Supply |
: |
110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |
|
Dimensions |
: |
1550L x 800W x 805~810H mm |
|
Features: |
»Stainless steel power roller table machine with 3 sets of photocells and pneumatic press bar JN-85PRAPN-2HT. |
|
»Optional straps No. is available for 1, 2, 3, or no strapping on the packages. More strap application is also available as an option before the order is fixed. |
|
|
»This model can incorporate input and output conveyors as a strapping system. The control system of conveyors can be connected with the model. |
|
|
»An optional photocell to control the table transmitting is available, which can auto-stop the table when no package is input, |
|
|
»Equipped with Table Roller Cover. |
|
|
»Customize arch size. Table seep inverter (optional) |
