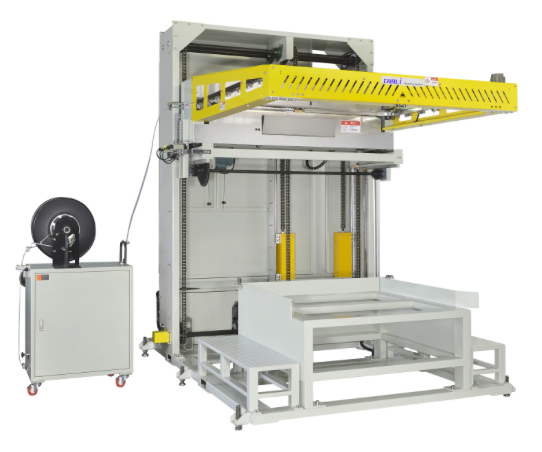

Automatic Horizontal strapping machine
>> Equipped with movable arch
>> Customized arch
>> Equipped with mobile pool cabinet
>> Machine body movement device (optional)
|
Arch Size |
: |
W1400XD1300XH1500MM |
|
Tension Strength |
: |
70Kgs / Max. |
|
Table Height |
: |
H650mm (customization) |
|
Strap Width |
: |
9~15.5mm |
|
Sealing Method |
: |
Heat Sealing |
|
Power Supply |
: |
110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |
|
Features: |
» New innovative design for horizontal strapping applications with chain-driven vertical movement. |
|
» Equipped with 2 photocells (standard). The machine can be equipped with three or more photocells with depends on customer’s requirements. (optional) |
|
|
» Horizontal movable strapping head (100-200mm) can approach the package and tightly strap. |
|
|
» Exhaust of strap detective function to notice by warning lamp. (optional) |
|
|
» Incorrect strap feeding detective function to notice by warning lamp. (optional) |
|
|
» The Arch Size is custom-made to user requirements. |
|
|
» P.E.T. strapping system is available as an option. |
|
|
» Dispenser core inner diameter: ∅406mm (optional) |
