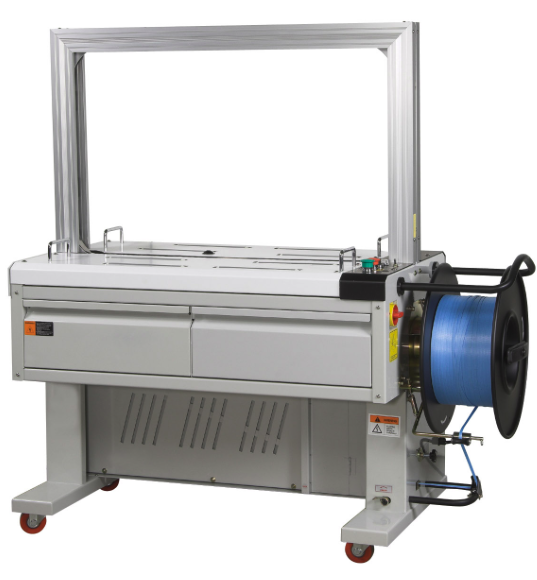

Strapping Machine (Standard type)
>> With table ball switch / buttom switch / foot switch
>> With reversing roller thermolysis design
>> Available combining with carton sealer
>> PCB control (standard), PLC control (option)
|
Arch Size |
: |
850W x 600H mm (Standard) |
|
Strap Cycle Speed |
: |
28 Cycles / 60hz / per Min. 26 Cycles / 50hz / per Min. |
|
Tension Strength |
: |
70Kgs / Max. |
|
Table Height |
: |
810mm |
|
Strap Width |
: |
9~15.5mm |
|
Sealing Method |
: |
Heat Sealing |
|
Power Supply |
: |
110/220V 50/60HZ 1PH. 220/380V 50/60HZ 3PH |
|
Dimensions |
: |
1400L x 640W x 1475H mm |
|
Packing Dimension |
: |
1450L x 830W x 1100H mm |
|
Machine Weight |
: |
220Kgs |
|
Gross Weight |
: |
270Kgs |
|
Features: |
»Modular designed Aluminum alloy arch, easy to assemble and disassemble |
|
»Auto strap positioning and retry feeding functions enable operating of humanity. |
|
|
»Convenient operating modes with the panel, ball switch, and foot pedal switch. |
|
|
»Internal electricity is 24V accessing, preventing operators from shocking. |
|
|
»With CKD frame and powder painting on a frame. |
|
|
»Change the color on the iron arch cover, front doors & frame is available. (Optional) |
