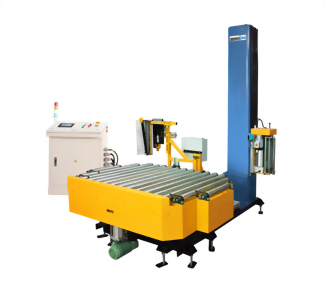

Pallet Wrapping Machine
Model :
Fully-auto
To integrated with in-feed & out-feed power conveyors as fully auto in-line wrapping system.
Equipped with auto film clamp, cut & wiper system makes wrapper ready for next pallet. Automatically complete film wrapping on pallet loads. Provide consistent wrapping and professional looking loads.
Frame, turntable adopts strong steel structure and equipped with heavy duty ring bearing. Reliable for longevity and easy to maintain.
Soft start, stop & home position to prevent load displacement at the beginning & the end.
Quick connector plug in & out, easy to install. Comprehensively correspondence with variety of applications.
| Turntable Dia. (mm) | 2000 (customize) |
| Wrapping Height (mm) | 2100 / 2400 |
| Max. Pallet Weight (kg) | Customize |
| Turntable Speed (R.P.M.) | 2~15 |
| Film Carriage Speed (m/min.) | 2~5 |
| Film Roll I.D. (mm) | φ76x W 500 |
| Power Consumption (kW) | 2.3 |
| Power Supply (50/60Hz) | 220/230/380/415/440V,3PH |
|
Dimension (L x W x H mm) |
3185 x 2000 x 2724 |
| Machine Net Weight (kg) | 1200 |
|
Pre-Stretch Ratio (50%,100%,150%,200%) |
Specified. |
*Specification subject to change without notice
- Top press
- Safety fence
- Top sheet dispenser
- Pallet exit at 90 degrees
- Power roller or chain conveyors
- Heat sealing plate (Reinforces film sealed on pallet load)
