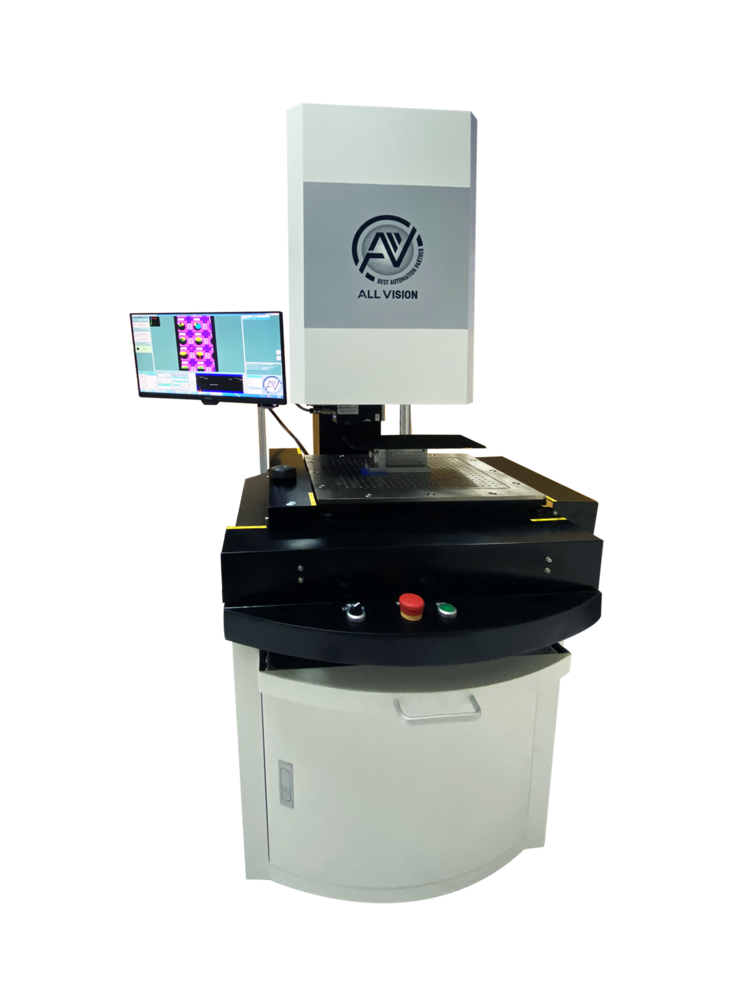

Introducing the next evolution in precision measurement technology – the 3D Vision Measurement Machine. Engineered to exceed expectations in accuracy, efficiency, and versatility, this cutting-edge device is the pinnacle of metrology solutions.

1. Precision Redefined

Experience unparalleled precision with advanced vision-based measurement capabilities. Utilizing state-of-the-art optical sensors and high-resolution imaging technology, our 3D Vision Measurement Machine delivers precise measurements with microscopic detail, ensuring accuracy down to the finest tolerances.

2. Efficiency Unleashed

Equipped with intuitive software, this machine offers seamless operation and effortless data analysis. With user-friendly interfaces and customizable measurement parameters, users can easily tailor measurements to their specific requirements, streamlining workflows and maximizing productivity.

3. Versatility Unmatched

Versatility is at the core of our design philosophy. Whether measuring complex geometries, intricate surfaces, or delicate components, our 3D Vision Measurement Machine offers unmatched flexibility to handle diverse measurement tasks with ease. From quality control in manufacturing to research and development applications, this versatile tool empowers users across industries to achieve superior results.

4. Reliability Reinforced

Built to withstand rigorous industrial environments, our 3D Vision Measurement Machine is engineered for durability and reliability. Robust construction and precision engineering ensure consistent performance even in the most demanding conditions, providing peace of mind and long-term value.

Elevate your measurement capabilities to new heights with the 3D Vision Measurement Machine – where precision meets innovation, and accuracy knows no bounds.

• Measurement Stroke (X, Y, Z): 300mm x 200mm x 200mm
• Appearance Size: 700mm x 700mm x 1800mm (Reference)
• Weight: 160kg (Reference)
• Resolution:
  • X, Y Resolution: ≥ 0.01mm
  • Z Resolution: ≥ 0.005mm
• Repeatability: Z Repeatability: 0.5μm
• Optical Ruler Resolution: 0.5μm
• Operation Method: Intelligent Program Control / Simple Operation Interface
• Workbench: Granite + Aluminum Alloy Mobile Platform
• Transmission Mode: X, Y, Z Linear Slide + Ball Screw
• Power Supply: 110V-220V ±10%
• Additional Features:
  • Precision Linear Slide Rails
  • Instrument Cabinets
  • 3-Axis Closed-Loop Servo Motor Control

• Precision Measurement: Achieve unparalleled accuracy with advanced vision-based measurement technology, ensuring precise results down to the finest tolerances.
• Versatile Measurement Capabilities: Measure complex geometries, intricate surfaces, and delicate components with ease, making it suitable for a wide range of applications across various industries.

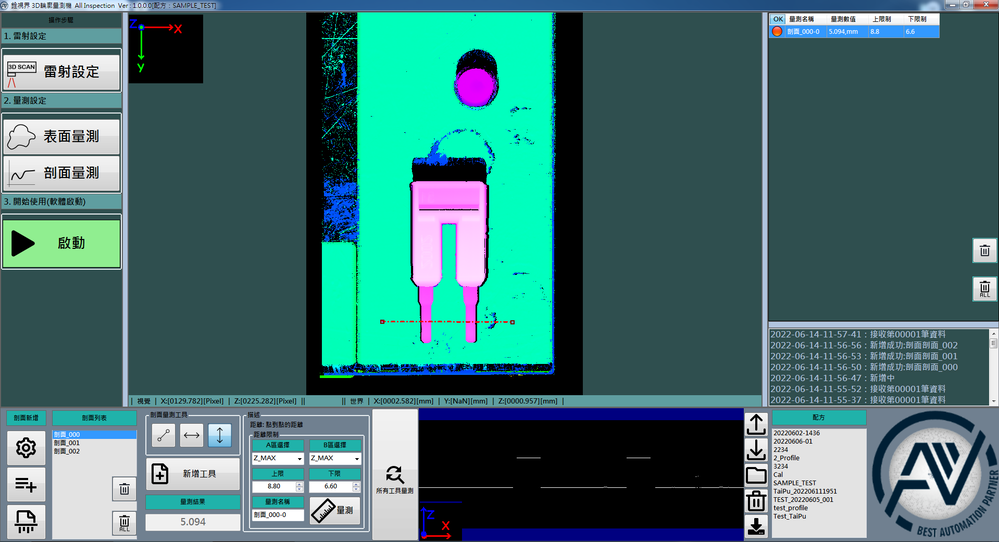

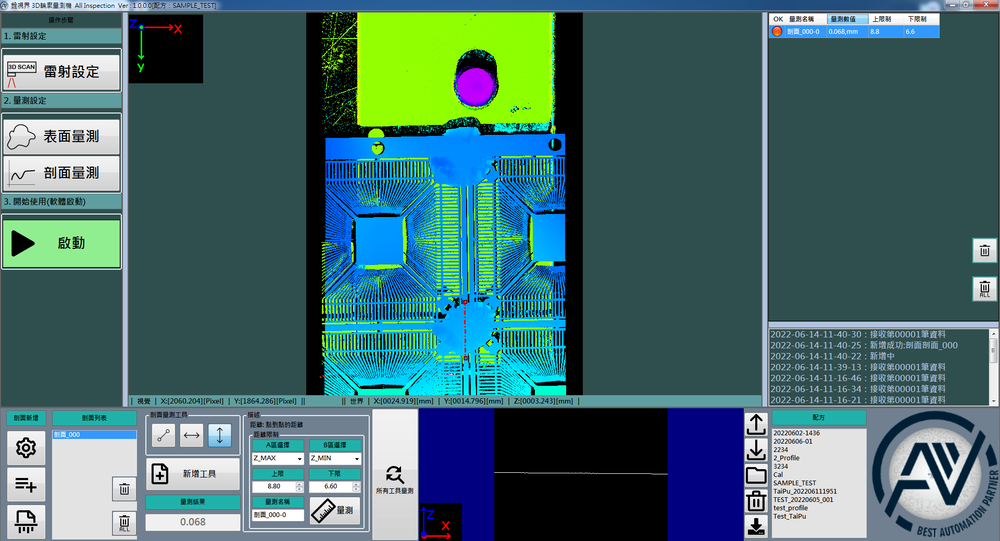

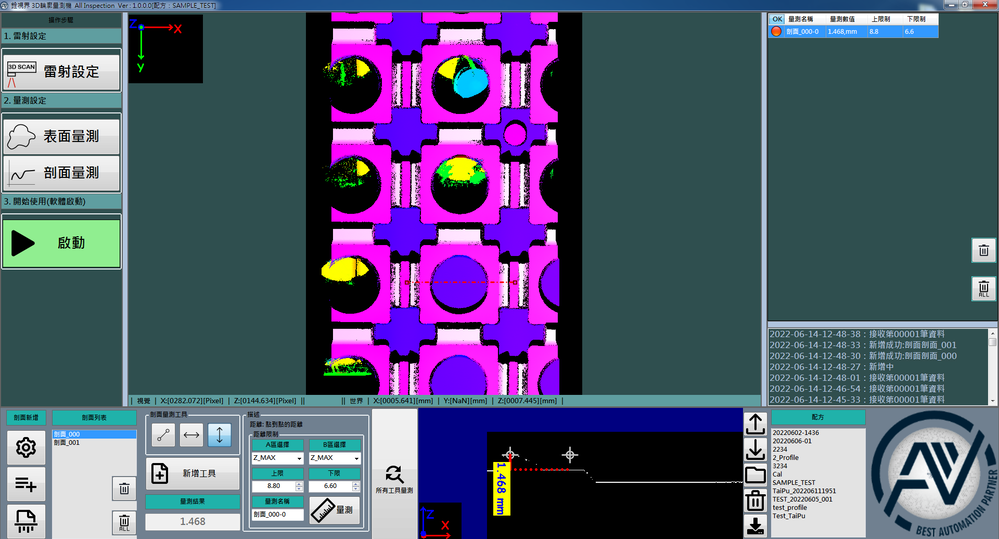

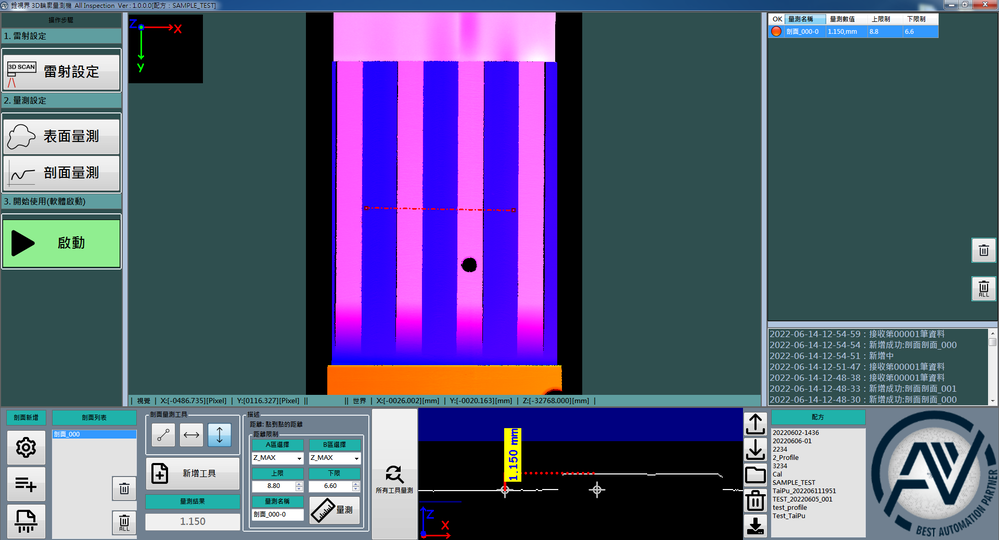

• Intuitive Software: Seamlessly control and analyze measurement data with user-friendly software interfaces, enabling efficient operation and streamlined workflows.
• Flexible Operation: Choose between intelligent program control or a simple operation interface to suit your specific needs and preferences, enhancing usability and productivity.
• Durable Construction: Built to withstand rigorous industrial environments, featuring a robust design and high-quality materials for long-lasting performance and reliability.

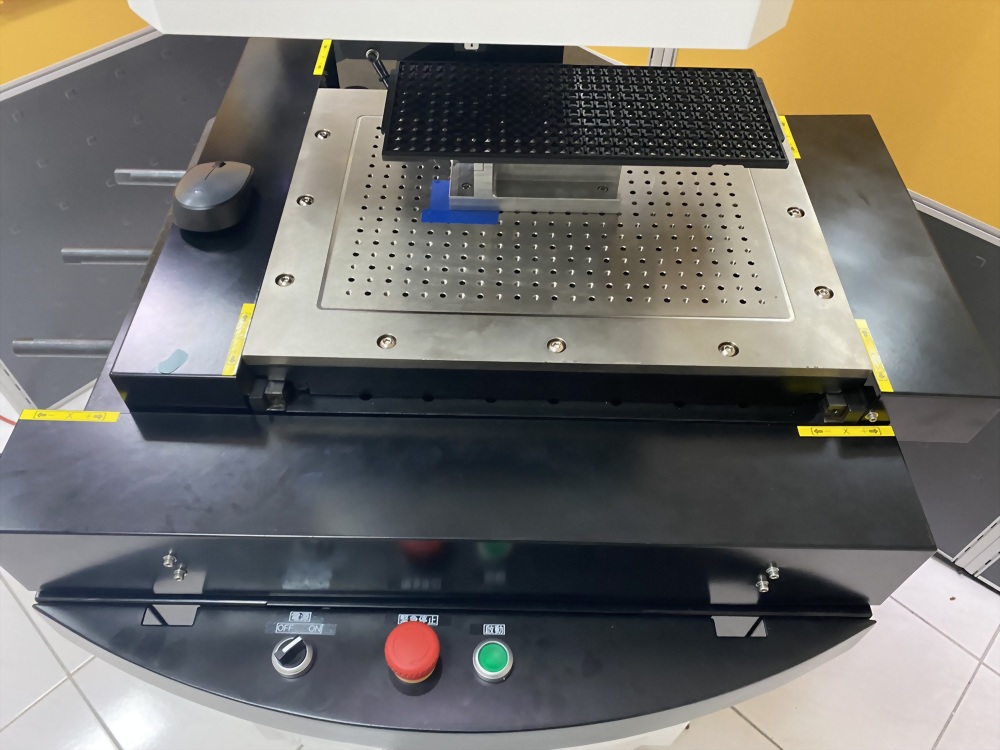

• Granite and Aluminum Alloy Workbench: Utilize a sturdy workbench made from granite and aluminum alloy for stability and precision during measurements.
• Linear Slide and Ball Screw Transmission: Ensure smooth and accurate movement with X, Y, Z linear slide and ball screw transmission, providing precise positioning and repeatability.
• High-Resolution Imaging: Utilize advanced optical sensors and high-resolution imaging technology for detailed and accurate measurement of intricate surfaces and features.
• Wide Power Supply Compatibility: Compatible with power supplies ranging from 110V to 220V, ensuring flexibility and ease of integration into various work environments.
• Additional Features: Includes precision linear slide rails, instrument cabinets, and 3-axis closed-loop servo motor control for enhanced functionality and performance.

• Golf Club Manufacturing: Partnered with a leading golf club manufacturer OEM factory to provide precision measurement solutions for golf club components, ensuring high-quality and accurately manufactured products.

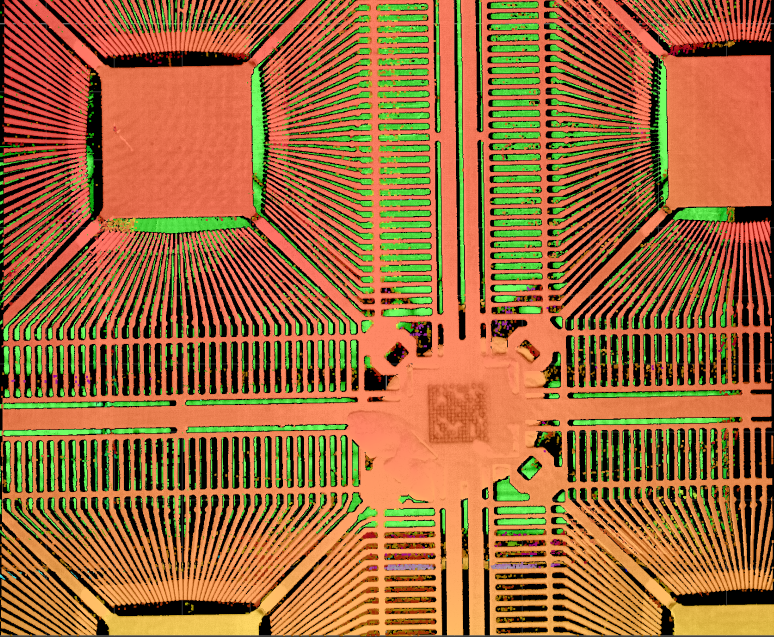

• High Technology Companies: Collaborated with multiple high technology companies in Taiwan to deliver cutting-edge measurement technology for a wide range of applications, including semiconductor manufacturing, electronics assembly, and precision engineering.
