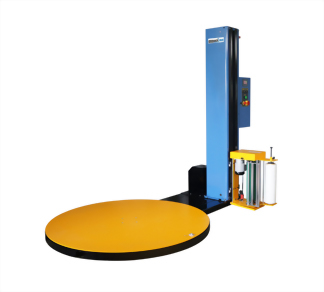

Pallet Wrapping Machine
Model :
Semi-auto
Nice-AL carries all superior performances of others type and coupled with the function of auto film clamp and cut system to save time, manpower and increase production capacity.
As auto clamp device makes wrapper ready for next pallet, benefit to eliminate double or tripled load handling.
Low profile turntable designed for pallet jack or forklift, easy loading.
Plus a remote control to start & stop. One touch makes wrapping easy and efficiency.
| Turntable Dia. (mm) | 1800 |
| Wrapping Height (mm) | 2100 / 2400 |
| Max. Pallet Weight (kg) | 2000 |
| Turntable Speed (R.P.M.) | 5~15 |
| Film Carriage Speed (m/min.) | 2~5 |
| Film Roll I.D. (mm) | φ76x W 500 |
| Power Consumption (kW) | 1.4 |
| Power Supply (50/60Hz) |
110/220/230/240V,1PH 220/230/380/415/440V,3PH |
|
Dimension (L x W x H mm) |
3019 x 1800 x 2374 |
| Machine Net Weight (kg) | 800 |
|
Pre-Stretch Ratio (50%,100%,150%,200%) |
Specified. |
*Specification subject to change without notice
-
- Top sheet applied
- Middle reinforcement
- User friendly HMI touch panel
- Remote control to start & stop
- Auto film clamp and cut system
- 2 auto wrapping programs built-in
- Auto film tear-off (without pre-stretch)
- Proximity sensors for loading height detect
- Turntable and film carriage speeds adjustable
- Turntable soft-start, soft-stop and home position
- Film tension adjustable ( Electromagnetic brake system)
