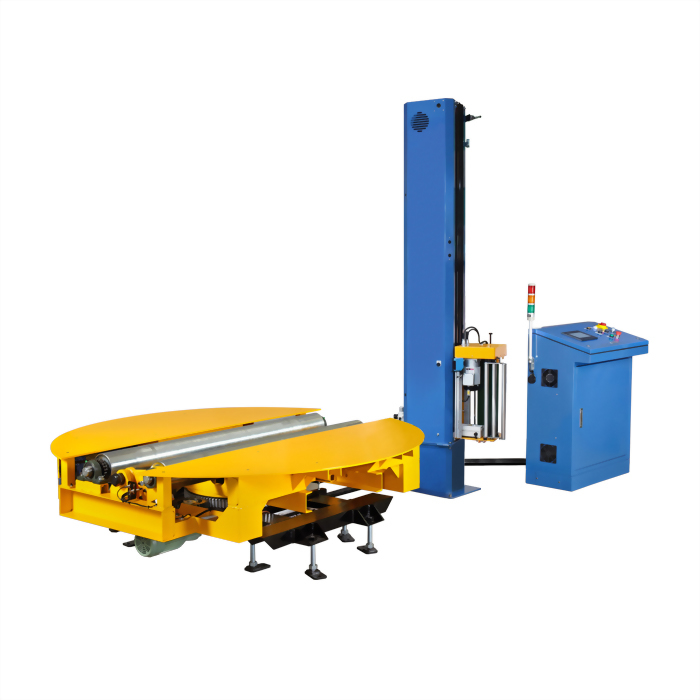

Jumbo Roll Wrapping Machine
Model :
Fully-auto
Specialty designed for wrapping roll products.
Heavy duty steel rolls plus turntable rotation simultaneously, wrapping machine creates a 3 dimensional wrapping and completely provides a good protection on roll products.
Frame, turntable adopts high steel structure and equipped with heavy duty ring type bearing. Reliable for longevity and easy to maintain.
Soft start, stop & home position to prevent roll displacement at the beginning & the end.
Quick connector plug in & out, easy to install. Comprehensively correspondence with variety of applications.
| Turntable Dia. (mm) | 2000 (customize) |
| Wrapping Height (mm) | 2100 /2400 |
| Max. Pallet Weight (kg) | Customize |
| Turntable Speed (R.P.M.) | 2~15 |
| Film Carriage Speed (m/min.) | 2~5 |
| Film Roll I.D. (mm) | φ76x W 500 |
| Power Consumption (kW) | 2.3 |
| Power Supply (50/60Hz) | 220/230/380/415/440V,3PH |
|
Dimension (L x W x H mm) |
3190 x 2000 x 2398 |
| Machine Net Weight (kg) | 1500 |
|
Pre-Stretch Ratio (50%,100%,150%,200%) |
Specified. |
*Specification subject to change without notice
- Soft star and stop.
- Tension to load adjustable.
- 3 dimensional reel wrapping.
- Film carriage speed adjustable.
- Package roll ejecting out system.
- Electronic magnetic brake system.
- 2 various wrapping programs, user friendly.
- 2 in 1 machine for both reel product & standard pallet load.
