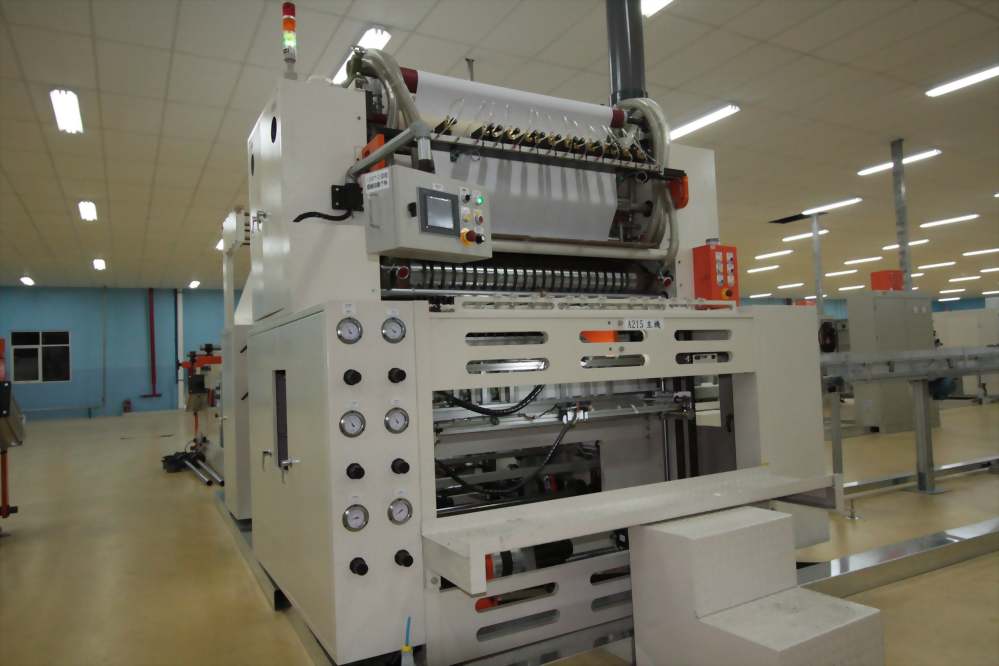

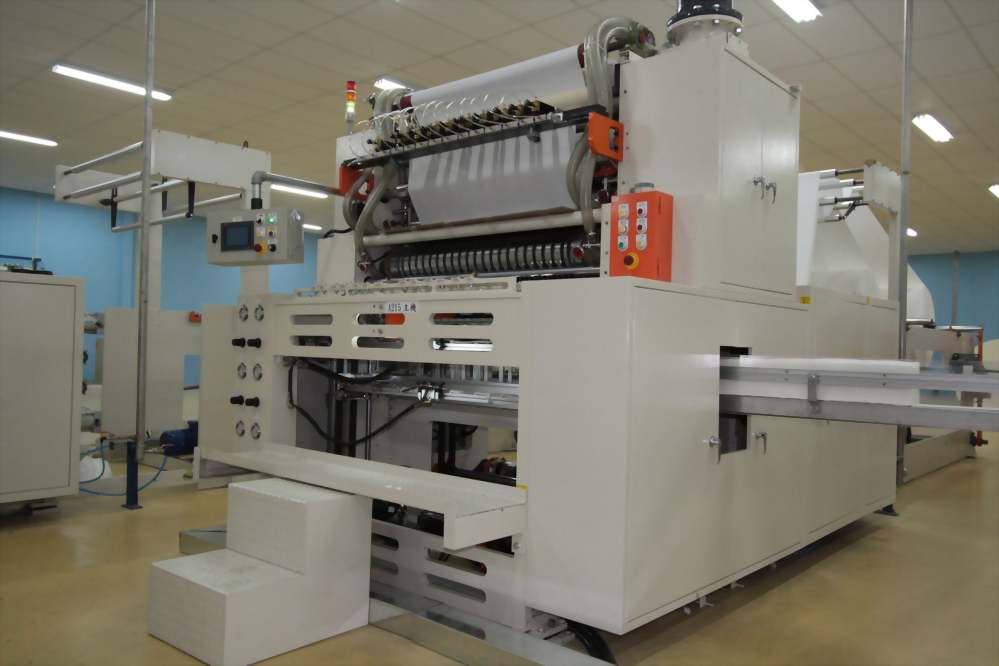

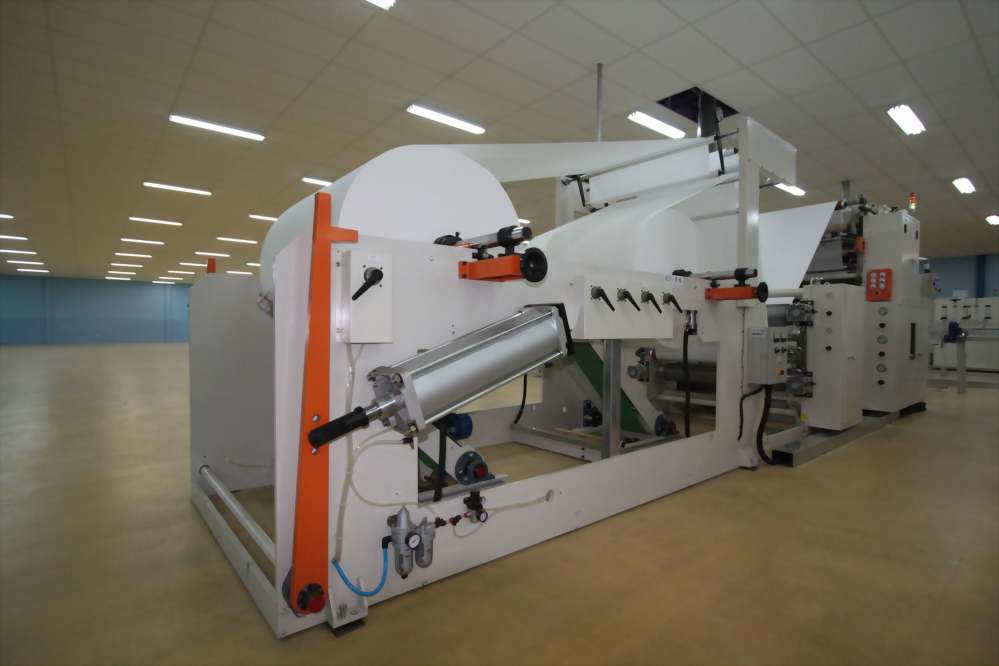

Interfold Tissue Folding Machine (Auto transfer)
Power: 3 phase, 400V, 50 Hz

1. Sheet size: (L) 225 mm * (W) 2800 mm * 1 lane
2. Folded size: (L) 225 mm * (W) 2800 mm * 1 lane
3. Fold type: Z/V/N – fold
4. Design speed: 120 M/ min
5. Operate speed: as below
a. 80 - 90 M/min ( for product in 100 sheets)
b. 90 - 100 M/min ( for product in 200 sheets)
6. Converting web: 2,3 ply facial tissue
7. Parent roll width : 2800 mm
8. Basis weight : 14-16 gsm/ply
Upper gum base weight:18-22 gsm/ply
9. Parent roll dia.: 2000mm (1500 kg for Max. Weight)
10. Core dia.: 152 mm
11. Main power : as below (folding section)
a. Motor : 50 HP (Siemens) * 1 each
b. Inverter: Mitsubishi * 1 each
12. Vacuum pump : 2 set ( Specification as below)
a. Brand : Long tech
b. Power : 75 HP Motor (Siemens)
