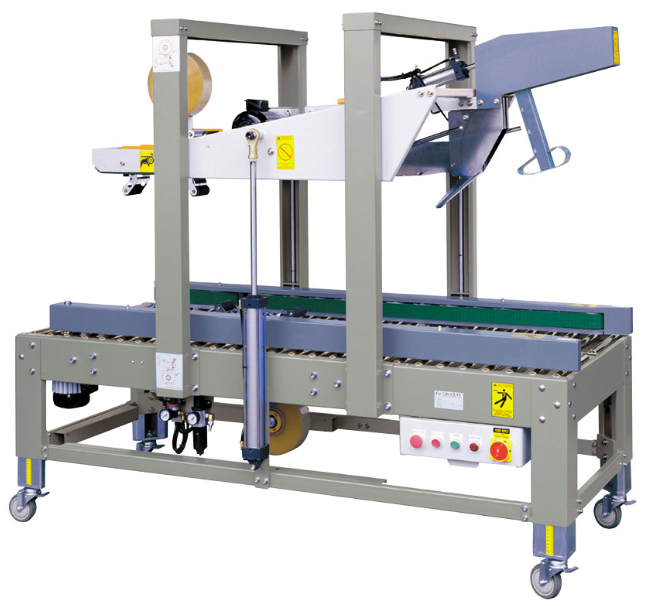

Auto Folding Carton Sealer
>> Equipped with top carton flap folding device
>> With top and bottom taping head
>> Automatic adjust height and width by pneumatic cylinder
>> Easy operation and maintenance
>> Extension free roller conveyor (optional)
>> CE regulartion safety cover (optional)
|
Power Supply |
: |
1 Phase 110V/220V/240V 50/60HZ |
|
Packing Size |
: |
Max.: L550 x W500 x H500 MM Min.: L250 x W170 x H120 MM |
|
Tape Width |
: |
50MM (2”) or 76mm (3”) |
|
Working Table Height |
: |
570~770MM (Adjustable) |
|
Machine size |
: |
L2140 x W1130 x H1235~1835 MM |
|
Air Compressor |
: |
6 Kg/cm2 |
|
Features: |
» The Width & height of the carton are adjusted by an automatic pneumatic system and it is suitable for the fully-automatic packing system with various sizes of cartons. |
|
» The top flaps of the carton will be automatically folded and be sealed smoothly at a time. It will save labor and a lot of time. |
|
|
» The side driving device can automatically fix the position of the carton, start sealing and the whole operation is stable. |
|
|
» The table height can be adjusted according to the height of the input & output conveyor. |
|
|
» it is available equipped with 2 sides of CE safety covers for CE application. |
